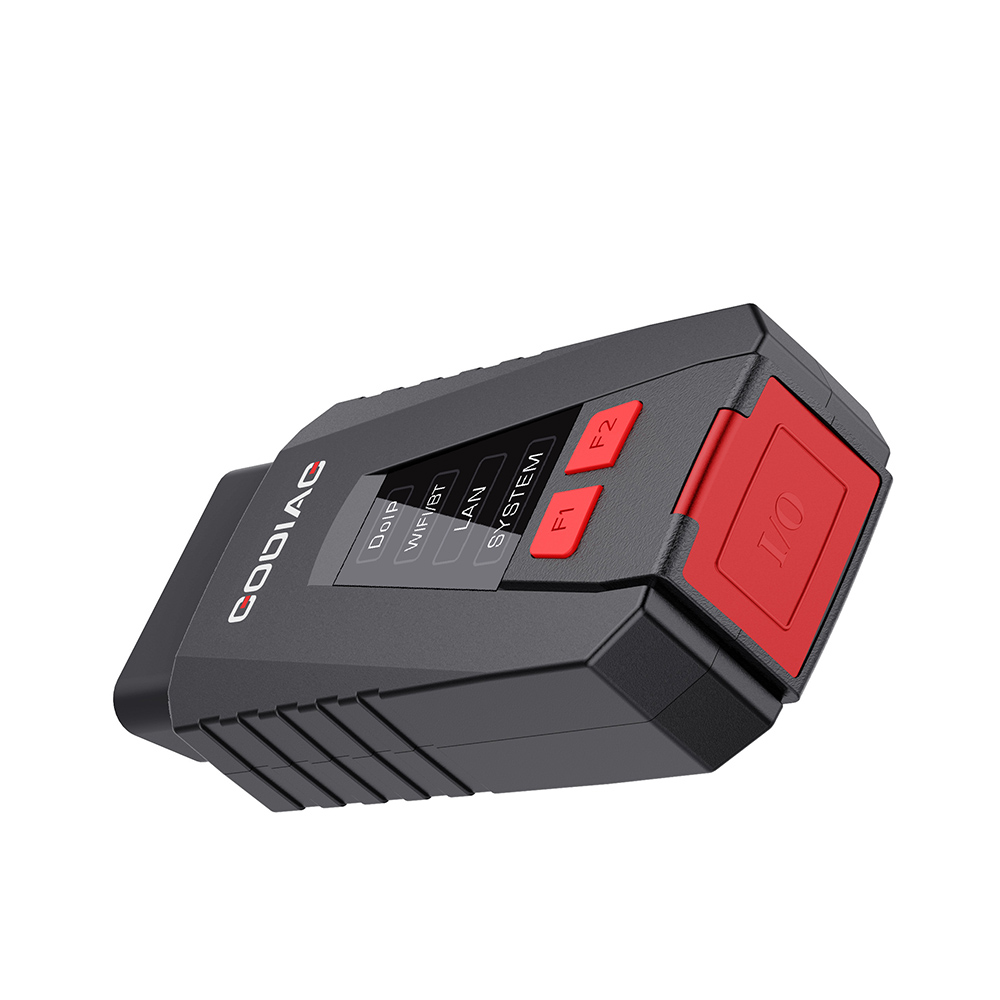

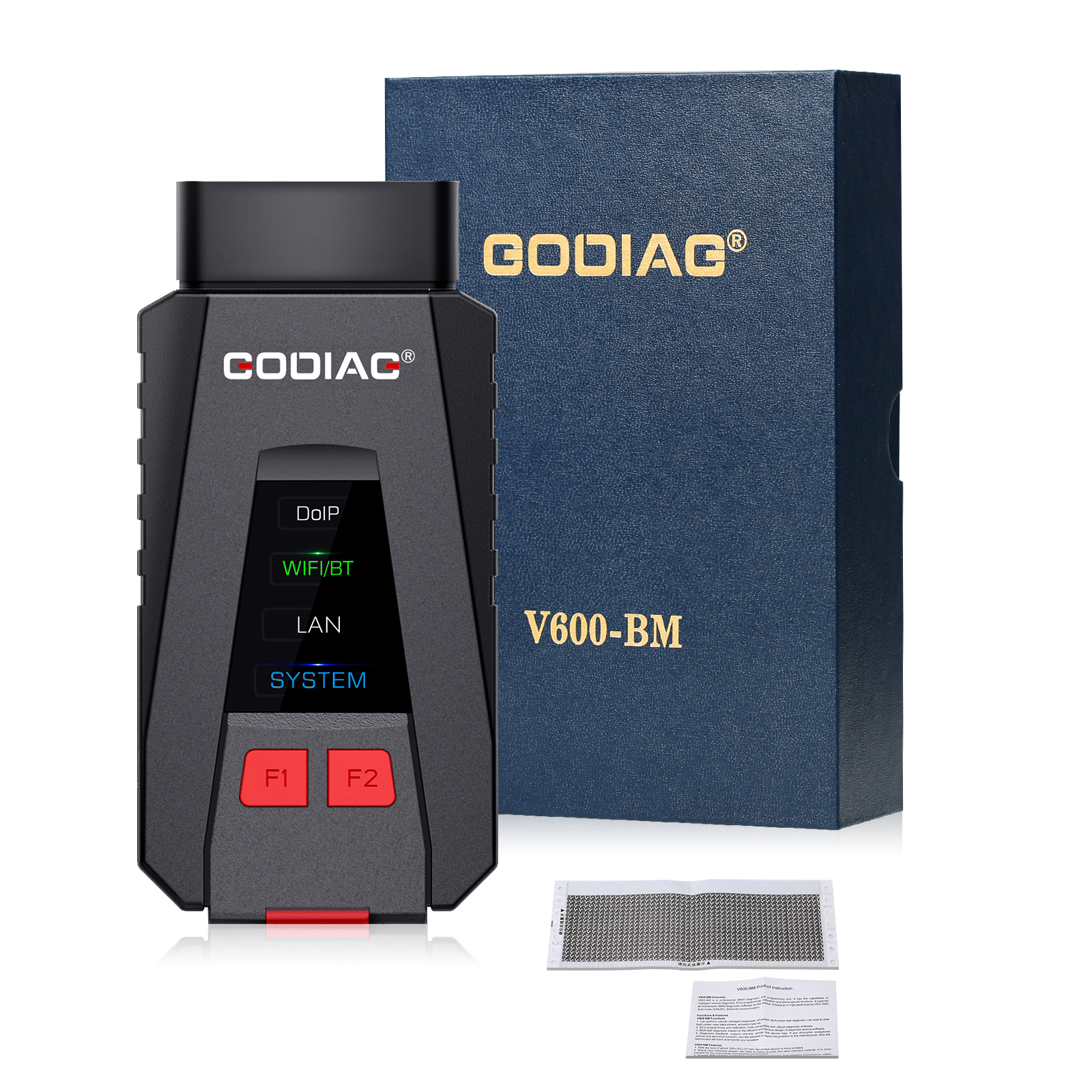

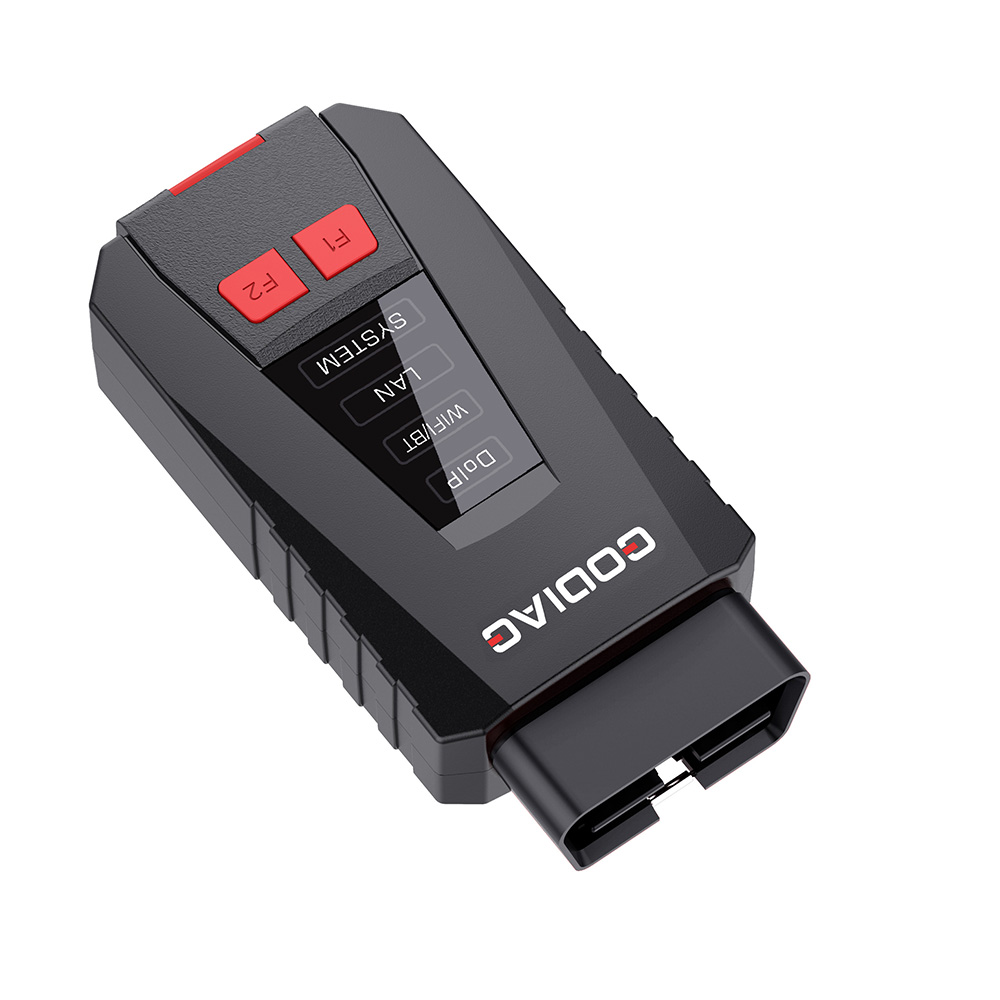

GODIAG V600-BM Diagnostic and Programming Tool for BMW Supports DOIP K-Line CAN FD Same Functions As BMW ICOM A2/ICOM Next

GODIAG V600-BM Functions
1. Can perform vehicle intelligent diagnosis, all-system all-function fast diagnosis; can read & clear fault codes, read data stream, actuation test etc.
2. ECU programming and calibration. Fully compatible with official diagnostic software
3. Multi-task diagnosis: based on the efficient architecture design of diagnosis service software
4. Diagnostic feedback: support one-key upload the device logs. If you encounter exceptional vehicle and abnormal function, you are allowed to report the problem to the manufacturer, then the technicians will track and handle your problem.

GODIAG V600-BM Features

1. With the size of about 108 x 52 x 27 mm, the pocket device is more portable
2. Brand new industrial design, the shell is made of solid and stain-resistant material, it is more suitable for the automobile maintenance environment.
3. Support WiFi wireless connection, high-speed transmission, long-distance transmission, stable signal and strong anti-interference; WiFi can be set as STA or AP mode at the same time, making users work in comfortable indoor environment.
4. Support wired Ethernet connection,can freely switch between 2 modesWAN / LAN.
5. Support protocols for BMW diagnosis, including: ISO14230, ISO15765, IFH, DOIP, etc.
6. Cover a wide range of vehicles and support efficient and reliable diagnostic functionsand a variety of special functions.
7. Ensure communication security and can encrypt communication data to ensure device and vehicle safety.



GODIAG V600-BM Supported Software:

1.Comes with ISTA-D, ISTA-P, Tool32,  For BMW Coding, ISPI, INPA, E-SYS, WINKFP, NCS-Expert Tool, and you can directly run them.
2.Compatible Protocol: J2534, CAN-FD, DOIP, D-CAN, ISO14230, ISO15765, IFH, K-line



GODIAG V600 Update Schedule:
1. Plan to add authorization of  Benz, Land Rover, Jaguar, CAN-FD, Toyota, VW, Audi (ODIS software)
2. Dedicated Android APP is under development , it will support both Ethernet  and WiFi communication.

Support OEM professional diagnostic function of all For BMW series:
1 series: 1'_E81/E81/E87/E88,1'_F20/F21
2 series: 2'_F22/F23,2'_F45/F46,2'_F87
3 series: 3'_E46,3'_E90/E91/E92/E93, 3'_F30/F31/F34/F35,3'_F80
4 series: 4'_F32/F33/F36,4'_F82/F83
5 series: 5'_E39,5'_E60/E61,5'_GT(F07), 5'_F10/F11/F18
6 series: 6'_E63/E64,6'_F06/F12/F13
7 series: 7'_E38,7'_E65/E66,7'_F01/F02/F03/F04, 7'_G11/G12
X series: X1_E84,X1_F48/F49,X3_E83,X5_E53,X5_70,X6_E71,
X6_E72,X3_F25,X5_F15/F85,X6_F16/F86,X4_F26
Z series: Z4_E85/E86,Z4_E89
I series: I'_I01/I02
MINI:  MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60,  MINI_F55/F56


GODIAG V600 stand-out features:

1. Contained with dedicated For BMW software (same as ICOM, ICOM A2 / A3 / NEXT etc, no need to install any driver.)
1) ISTA-D: used to read / erase fault codes, read the data flow, maintenance guidance, circuit diagram, wiring diagram and directly upgrade & program new models. It will activate the ignition switch without keys during diagnosis.


2). ISTA-P: an off-line programming and coding software system, including the latest database for programming E, F, G, K, I series models


3). Engineer programming & coding software for F series vehicles

4). WINKFP: engineer programming software for E series vehicles.
5). NCS-Expert Tool: engineer programming software for E series vehicles.
6). INPA: engineering diagnostic software for E series vehicles.

7). Tool32: engineer command execution software for E series vehicles.
8). For BMW Coding Tool: WINKFP NCS auxiliary software for importing engineer data for E series vehicles.


2. Provide a variety of communication modes:
USB 2.0
DoIP indicator
Ethernet 10/100Mbps
WIFI/BT 802.11 indicator  150Mbps
ETH indicator
System Indicator

3. Specifications
Suitable power: 7-32 V
About 300 mA when the power is 12V
High-speed processor: CPU 580 MHz MIPS, 32MB FLASH,128MByte RA, Built-in 32G TF card(optional)


4. Replace any of these For BMW diagnostic tools: For BMW ICOM, ICOM A2 / A3 / Next etc.

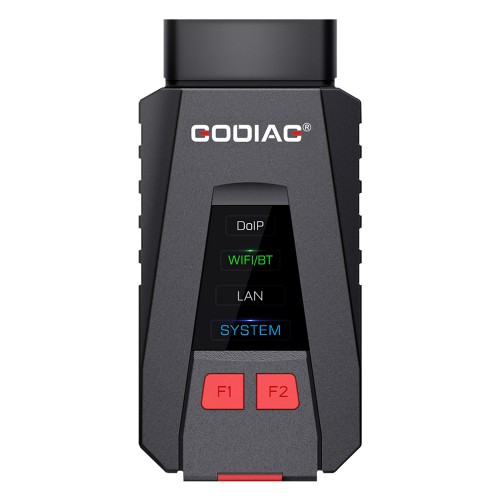

5. The Button Function:
F1-Press it for more than 3s to reset factory setting
F2-Press it to restart system

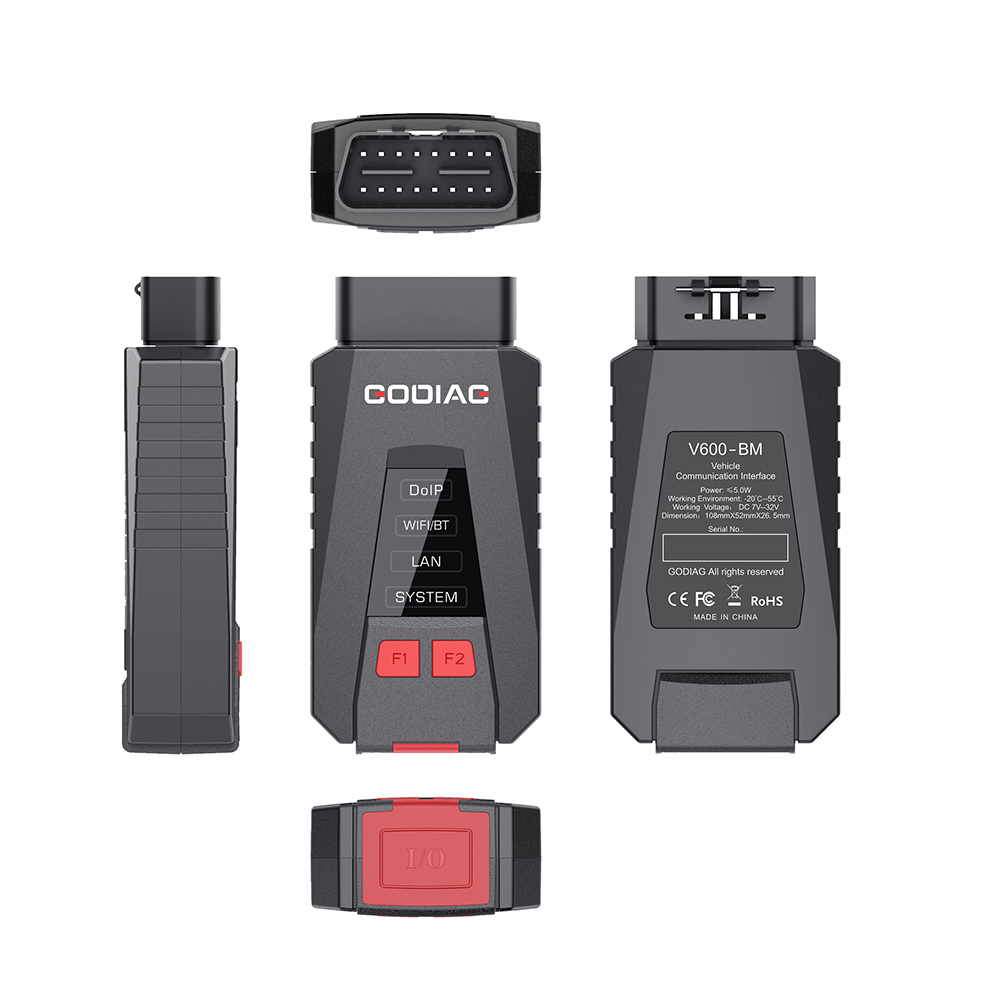

V600-BM Parameters:

Shell	The shell is made of Polyamide.  Size:108 x 52 x 27 mm
Power Supply	7-32 V
Current Consumption	About 300 mA when the power is 12V
CPU	580 MHz MIPS, 32MBFLASH, 128MByte RA, built-in 32G TF card(optional)
Operating System	Linux
WiFi	150Mbps Wi-Fi 1T1R 802.11bgn
Interface	USB 2.0 Ethernet 10/100Mbps
Indicator	DoIP indicator WIFI/BT indicator ETH indicator System indicator
Buzzer	Sound Pressure Level:  MIN.80 dB
Temperature	Working：-20 ... +55°C, Storage：-20 ... +85°C
Protection Rating	Dust prevention and water resistance conform to IP52
Conform to Electromagnetic Compatibility	Noise emissions：EN 55011,EN 55022 Anti-interference：EN 61000-6-2, EN 61000-6-4

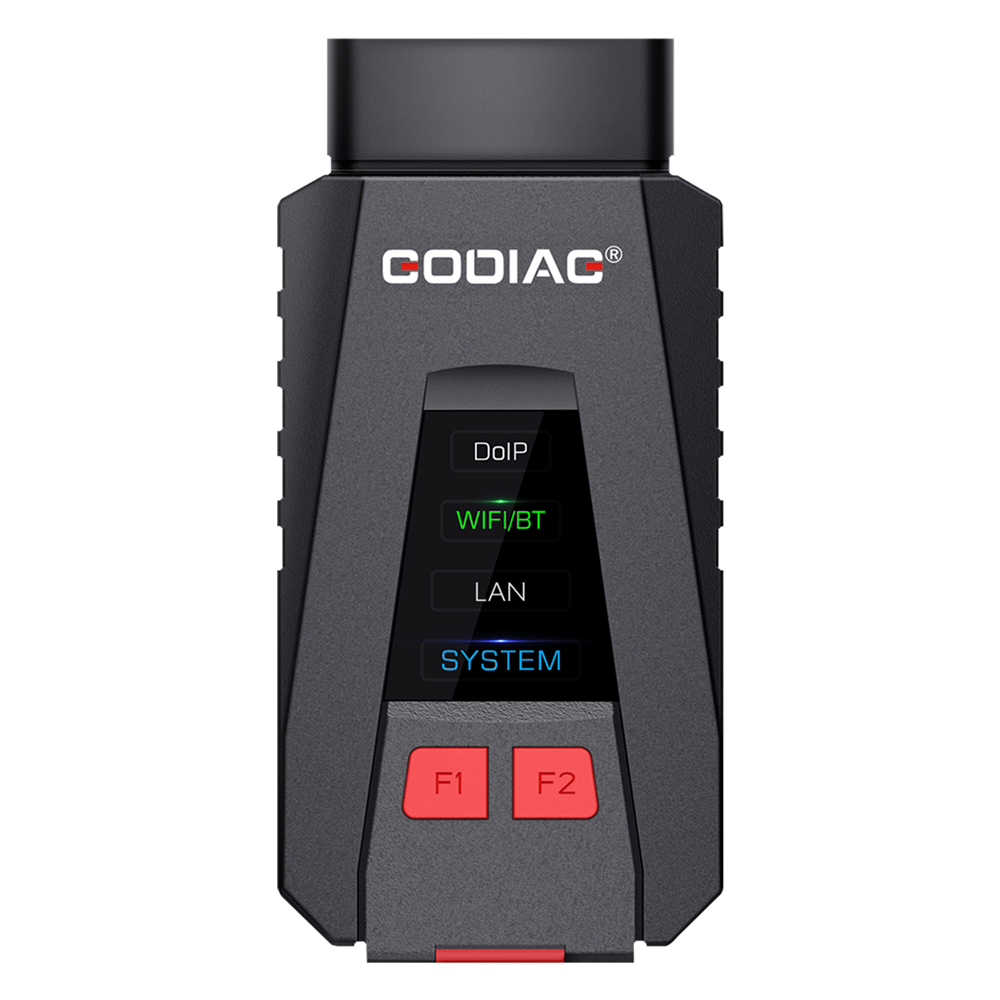

LEDs	Operating state		Non-operating state
	Normal	Abnormal
DOIP	The green light flashes	The red light is on	The lights don’t work
WIFI/BT	The green and blue lights flash alternately	The red light is on	The lights don’t work
ETH	The green light flashes	The red light is on	The lights don’t work
System	The green and blue lights flash alternately	The red light is on	The lights don’t work
