GODIAG GT106 24V to 12V Heavy Duty Truck Adapter for X431 for Truck Converter Heavy Duty Vehicles Diagnosis Support ThinkCar, Thinkcar2, Thinkdiag

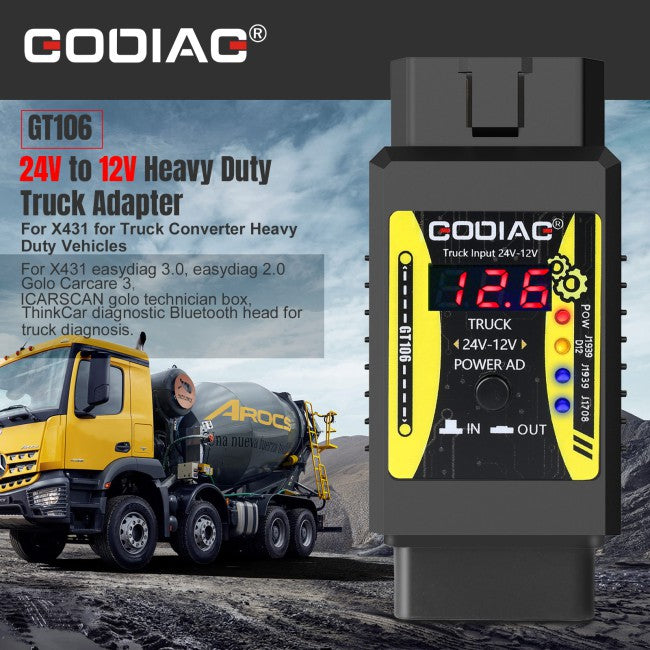

GODIAG GT106 Heavy Truck Power Module Converter

Product Introduction:

The GODIAG GT106 Heavy Truck Power Module Converter is designed to convert a heavy-duty truck diagnostic interface from 24V to 12V. It is compatible with diagnostic devices such as X431 EasyDiag 3.0, EasyDiag 2.0, Golo CarCare 3, iCarScan, Golo Technician Box, ThinkCar, ThinkCar 2, ThinkCar Pro, ThinkDiag, ThinkDiag Mini, ThinkDriver, and other Bluetooth OBD2 diagnostic interfaces that support truck diagnostic software.

The GT106 supports any compatible diagnostic device as long as truck diagnostic software can be installed and used on the device.

It converts the truck's 24V K-Line communication protocol to 12V K-Line, allowing 12V diagnostic interfaces to communicate safely with heavy-duty trucks. This helps protect diagnostic equipment from damage caused by direct connection to a 24V system.

Product Functions:

1. Converts the 24V diagnostic interface voltage of heavy-duty trucks, light trucks, pickups, and other commercial vehicles to 12V for use with compatible diagnostic equipment.
2. Converts the truck's 24V K-Line communication protocol to a 12V K-Line communication protocol.
3. When 24V input voltage is detected, the display screen shows the input voltage value, and the switch button pops up automatically.
4. When 12V output voltage is active, the display screen shows the output voltage value, and the switch button can be pressed down manually.
5. The communication protocol indicator light displays the communication status and indicates when data communication is in progress.

Compatible Diagnostic Devices:

• EasyDiag
• EasyDiag 3.0
• GOLO Green Edition
• M-DIAG
• iDiag
• iCarScan
• Diagun
• GOLO
• DBScar II

Product Features:

1. The output voltage is 12.5V, which simulates the typical operating voltage of a vehicle after startup. Many similar products provide a fixed 12V output, while most vehicles operate at approximately 12.5V after ignition.
2. Helps diagnostic software accurately detect vehicle ignition voltage. Some vehicle models require a specific ignition voltage level, and if the voltage drops to around 11V, certain diagnostic software may trigger warnings or interrupt the diagnostic process.

Supported Trucks and Heavy-Duty Vehicles:

ABS (HD), Allison (HD), Bendix ABS (HD), Bonluck (HD), Bosch (HD), Caterpillar (HD), Chaochai (HD), Chrysler (Diesel), Citroën (Diesel), CTRUCKTY (HD), CTRUCKZY (HD), Cummins (HD), Dachai (HD), DAF (HD), Dayun (HD), Demo (HD), Detroit (HD), DFL (HD), Dongfeng (HD), Eaton (HD), FAW (HD), Fiat (Diesel), Ford (Diesel), Foton Auman (HD), Freightliner (HD), GM (Diesel), Great Wall (Diesel), Haldex ABS (HD), Higer (HD), Hino (HD), Hongyan (HD), Huanghai (HD), Hyundai (HD), International (HD), Isuzu (HD), Iveco (HD), JAC (Diesel), JAC (HD), JAC Light (HD), JMC (HD), Kama (HD), Karry (HD), Karry Truck (HD), Kenworth (HD), King Long (HD), Kobelco (HD), Laidong (HD), Mack (HD), MAN (HD), Maxus (Diesel), MaxxForce (HD), Mazda (Diesel), Mercedes-Benz (HD), Mitsubishi (Diesel), Mitsubishi Fuso (HD), Nissan (Diesel), OBD (HD), Opel (Diesel), Paccar (HD), Peterbilt (HD), Peugeot (Diesel), Quanchai (HD), Renault (HD), Scania (HD), SCR (HD), Shacman (HD), Shangchai (HD), Sinotruk (HD), Sprinter (Diesel), Sterling (HD), Sunwin (HD), Toyota (Diesel), UD (HD), Volvo (HD), VW (Diesel), WABCO ABS (HD), WAW (HD), Weichai (HD), Western Star (HD), Wuzhoulong (HD), Xichai (HD), Yangchai (HD), YQSH (HD), Yuchai (HD), Yunnei (HD), Yutong (HD), and Zhongtong (HD).

Product Comparison:

Package List (5 Interface Boards Total):

1pc x BDC3-T2 Key-ICP-B Board
1pc x LCD Key(15-17) Encrypted Board
1pc x LCD Key(18-) Encrypted Board
1pc x BDC2/3 Encrypted Board
1pc x BCP Encrypted Board
